Handheld devices are prone to contact with sweat, rain, and in extreme cases, they may fall into water during daily use. These situations have increasingly strict requirements for waterproof sealing of handheld devices. How to design and produce waterproof equipment has become a challenge for structural engineers.
Our new material PW series products use water repellent raw materials added to polyurethane, which not only meets the compressibility and good thickness retention performance of the material, but also has excellent waterproof sealing effect. Can assist engineers in addressing the waterproofing challenges of handheld device structures.
Application location:
Sound chamber sealing
Circuit board chip surround sealing
Seal the plug connection
Shell sealing
I/O interface sealing
Product features:
Rich thickness, 0.3-1.0mm thickness provides abundant choices for ultra-thin space filling
Soft and comfortable, providing good sealing for filling space and compensating for corresponding tolerances
Good water repellency can effectively prevent water from entering, and appropriate compression can ensure better waterproof effect
Good resistance to compression and deformation, providing long-term protection for equipment

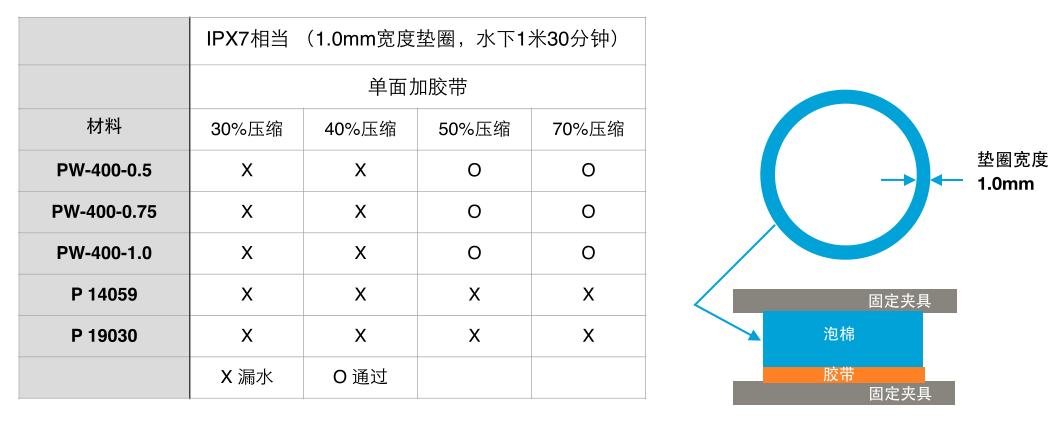

Waterproof performance test:

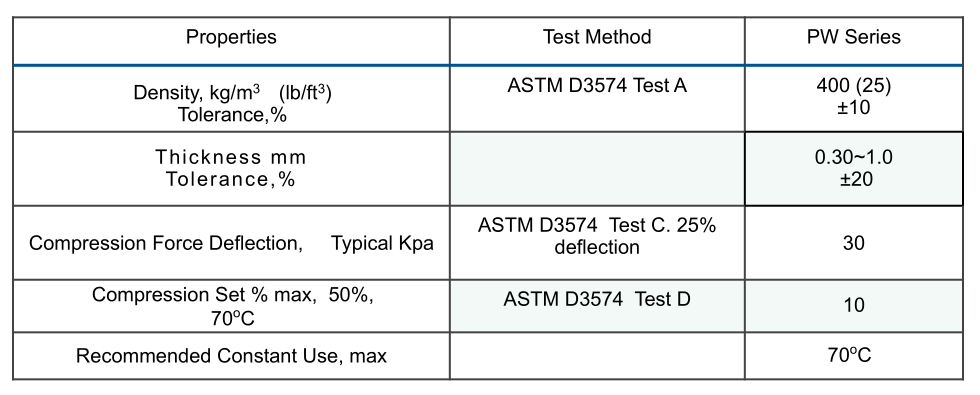

Product performance data:

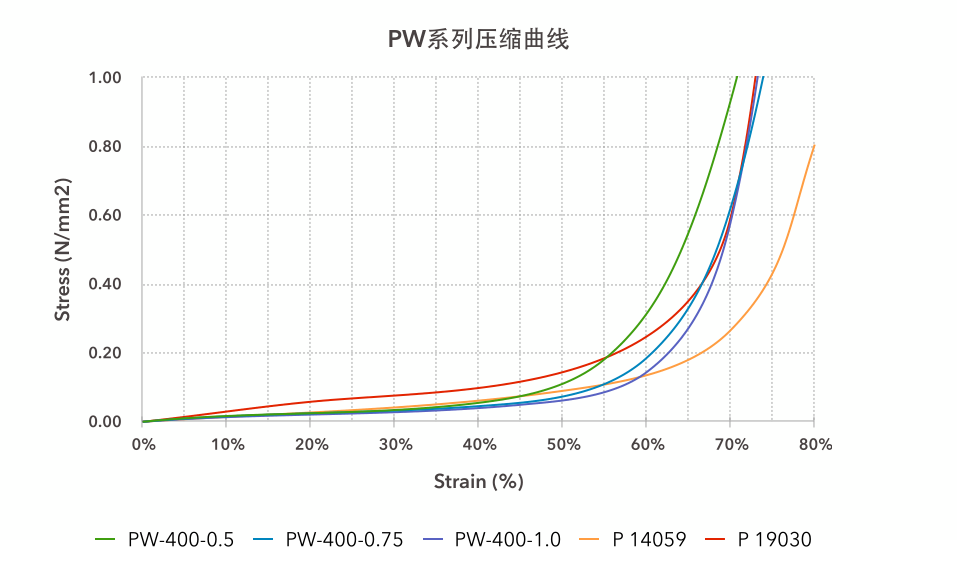

Product compression curve:
